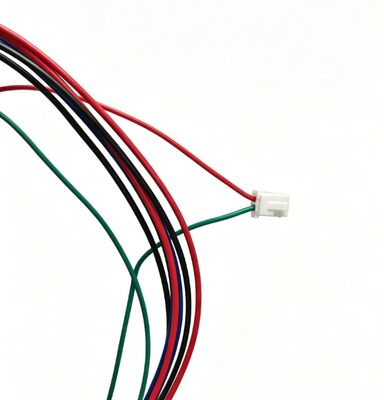

UL1007 22/26AWG 8Pin Receptacle Splitter Wiring Harness (With Micro Switch)
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Jianzhou |
| Certification: | CE / ISO9001 / FDA |
| Model Number: | Custom Wire |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 P |
|---|---|
| Price: | 1.5 - 2 USD / P |
| Packaging Details: | communicate |
| Delivery Time: | communicate |
| Payment Terms: | T/T |
| Supply Ability: | 10000000P |
|
Detail Information |
|||
| Operatingtemperaturerange: | 80°C | Mountingtype: | Plate End Mount |
|---|---|---|---|
| Connector Type: | Multi-pin Connector | Cable Material: | TPE (Thermoplastic Elastomer) |
| Cable Shape: | Round | Cable Design: | Braided |
| Connectortype: | Standard Automotive Connector | Insulation Material: | PVC |
| Surfacetreatment: | Tin Plated, Nickel Plated, Or Bare | Flexibility: | High |
| Connector Material: | Aluminum Alloy | Productname: | Plate End Wiring Harness |
| Insulationtype: | PVC, Teflon, Silicone, Or None | Material: | Copper And PVC |
Product Description

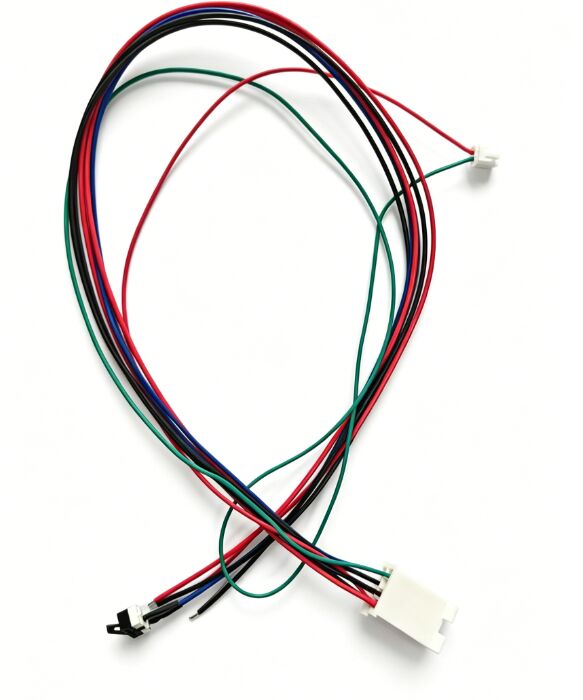

UL1007 22/26AWG 8Pin Receptacle Splitter Wiring Harness (With Micro Switch)
Product Description

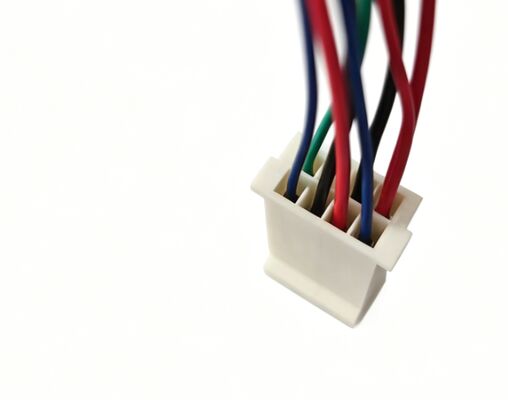

| Connector | 1. Input: 8Pin receptacle
|
| Length | 500mm / 650mm / 300mm |
| End Treatment | One end crimped to terminals/switch, the other end to 8Pin receptacle; with 6mm black heat shrink tubing |
| Insulation | Eco-friendly PVC insulation, with black heat shrink tubing reinforcement |
| Certification | RoHS/REACH Compliant |
Characteristics
1. Dual Wire Gauge Compatibility: Using 22AWG and 26AWG gauges for different current/signal circuits, ensuring optimized wiring.

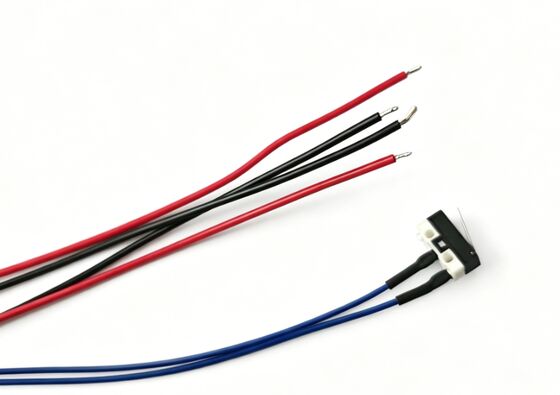

2. Multi-Terminal Compatibility: Supports spring terminals, XHB-2P terminal and micro switch simultaneously, suitable for multi-component connection scenarios.
3.Precise Length Control: Segment lengths customized per drawing to fit internal device space for seamless installation.
