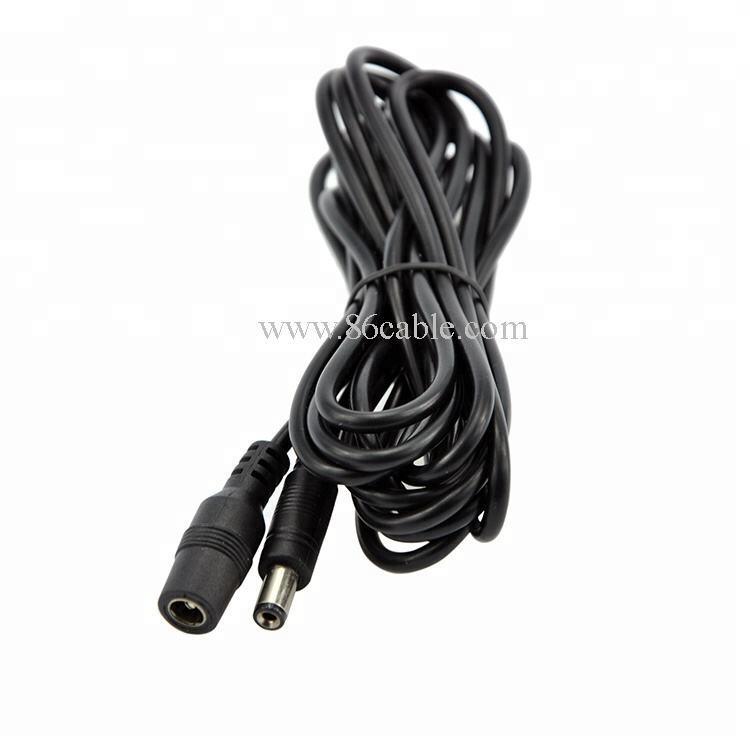

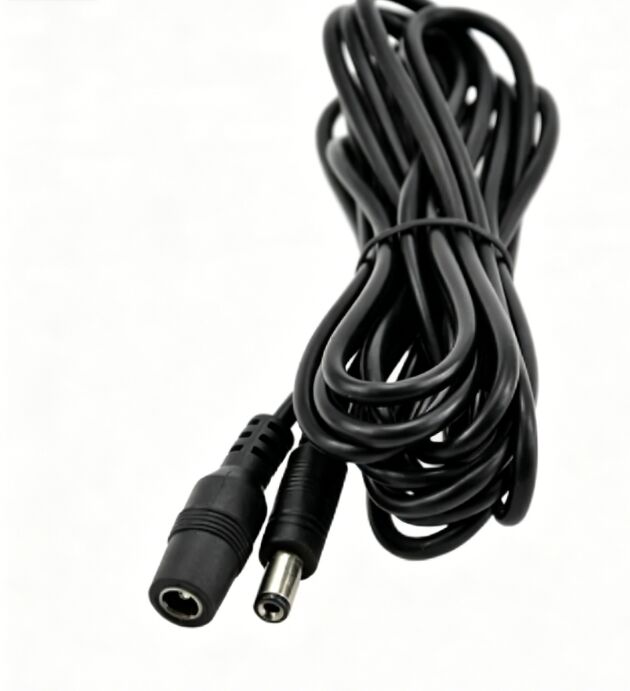

China DC Power Cable 5525 5521 2-Core With Copper Conductor And PVC Insulation Material
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Jianzhou |
| Certification: | CE / ISO9001 / FDA |
| Model Number: | DC Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 P |
|---|---|
| Price: | 1.5 - 2 USD / P |
| Packaging Details: | communicate |
| Delivery Time: | communicate |
| Payment Terms: | T/T |
| Supply Ability: | 10000000P |
|
Detail Information |
|||
| Shielding: | None Or Aluminum Mylar Shield | Cablesizerange: | 10 AWG To 500 Kcmil |
|---|---|---|---|
| Operatingenvironment: | Outdoor And Indoor | Flameretardant: | Yes |
| Productname: | DC Cable | Jacketmaterial: | PVC Or PE |
| Insulationmaterial: | Cross-linked Polyethylene (XLPE) | Standardscompliance: | UL 4703, IEC 62930 |
| Voltagerating: | 600V | Application: | Solar Power Systems, Battery Connections |
| Conductormaterial: | Copper | Cabletype: | Direct Current (DC) |
| Flexibility: | Flexible | Coloroptions: | Black, Red |
Product Description
China DC Power Cable 5525 5521 2-Core With Copper Conductor And PVC Insulation Material
| Plug/Jack/Connector | male to male/we also could do male to male/female to female/female pigtail/male pigtal dc cable |
| Size of plug | Right angle type or Straight type optional |
|
Cable |
DC5.5*2.1, DC5.5*2.5, DC4.0*1.7, DC3.5*1.35, DC2.5*0.7mm optional |
| UL2464 or 2468 or as your require | |
| Cable conductor | cooper |
| Optional Cable Gauge | 16AWG,18AWG,20AWG,22AWG,24AWG,26AWG,28AWG,30AWG |
| Cable Insulation | PPU or PVC(PPU cable Jacket is very good for coil cable) |
| Cable Length | 0.1m-10m Optional or as your require |
| Max Vol&Current of FUSE | 220V, 1-5A |
Characteristics
1. Insulation layer: The insulation of DC cables can be the same as that of oil-impregnated paper insulated cables, solid extruded polymer cables, self-containing oil-filled cables, and gas-filled cables. The thickness of its insulating layer must simultaneously meet the field strength requirements under both no-load and full-load conditions at the rated DC voltage, be able to withstand impulse test voltages, and ensure that the conductor temperature remains below the allowable value.
2. Armor layer: As the armor layer is not affected by the current of the conductor, there is no need to consider the loss of the armor layer or measures to reduce the resistivity of the armor layer. The structure of the protective layer mainly focuses on mechanical protection and corrosion prevention.
