12Pin Plate End To 8Pin + 4Pin Splitter Wiring Harness
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Jianzhou |
| Certification: | CE / ISO9001 / FDA |
| Model Number: | Custom Wire |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 P |
|---|---|
| Price: | 1.5 - 2 USD / P |
| Packaging Details: | communicate |
| Delivery Time: | communicate |
| Payment Terms: | T/T |
| Supply Ability: | 10000000P |
|
Detail Information |
|||
| Language: | English | Compliance: | RoHS, UL, CE (as Required) |
|---|---|---|---|
| Package: | PE Bag/Blister/ | Feature: | Multi Function Data Transfer Cable |
| Applicable Types: | Micro、iPhone、Type-C | Insulationtype: | Heat-resistant PVC |
| Retractable: | Not Scalable | Country Of Origin: | Guangdong,China |
| Compliancestandards: | RoHS, UL, CE | Insulationthickness: | Customizable, Depending On Application |
| Compatibility: | Compatible With Most Automotive Plate End Systems | Conductorstranding: | Solid Or Stranded Conductor Options |
| Ic Chip: | With IC Chip | Coloroptions: | Multiple Color Options Available |
Product Description
12Pin Plate End To 8Pin + 4Pin Splitter Wiring Harness
Product Description
| Connector Type | One end: Plate end connector with mounting bracket; The other end: 8Pin + 4Pin dual connectors |
| Pin Count | 12Pin (plate end) → 8Pin + 4Pin (split ends) |
| Wire Standard | UL1007 |
| AWG | 26AWG |
| Core Color | Multi-color coded wires (Red/Black/Yellow/Green etc.) |
| Application | Precision equipment, small home appliances, industrial control boards, PCB, smart devices and other split connection needs |
| Certification | RoHS Compliant |
| Customization | Customizable connector type, pin count, wire gauge, length, colors |
Characteristics

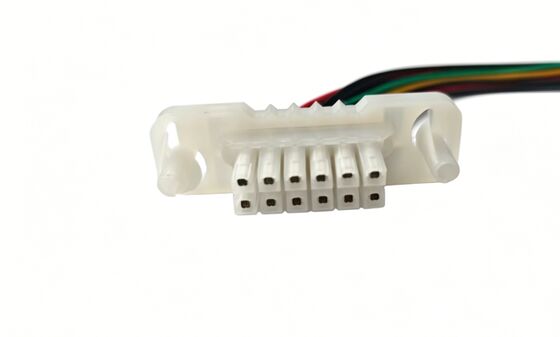

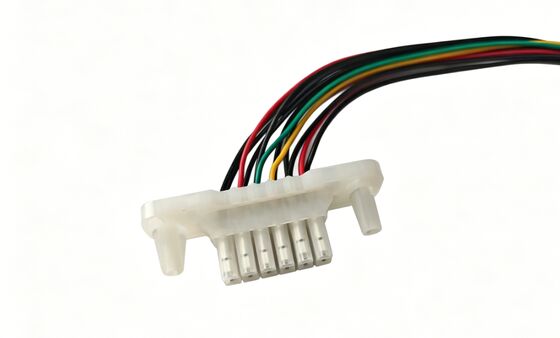

1. Mounting Bracket Design: The plate end connector is equipped with positioning holes, which can be directly fixed to the device to prevent harness displacement for stable installation.

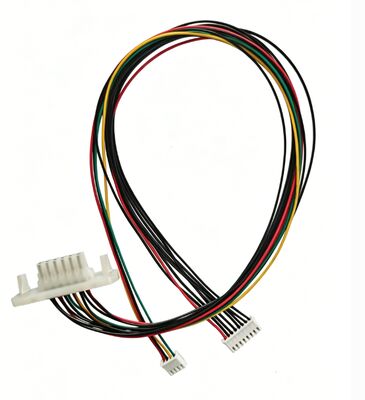

2. 12P to 8P+4P Splitter Connector Design: 12Pin plate end splits into 8Pin + 4Pin dual connectors, meeting multi-interface split connection needs of devices.

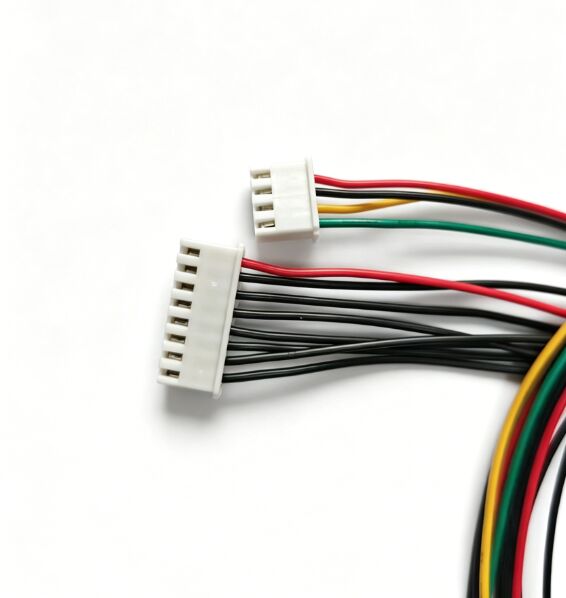

3.Multi-Color Coded Wires: Red/black/yellow/green colored cores for quick line identification, reducing wiring errors and improving installation efficiency.
4.Flexible & Durable Structure: High flexibility, anti-bending and anti-aging properties, suitable for wiring in narrow spaces with longer service life.
