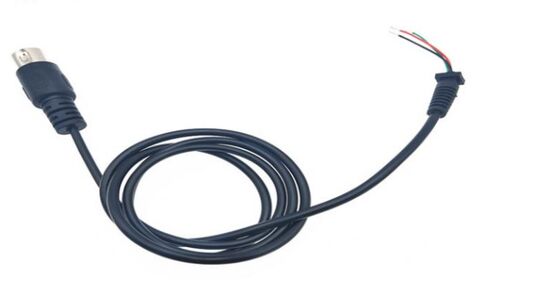

Vehicle / Camera Custom Cable Assemblies 7 Pin Male Mini Din Connector
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Jianzhou |
| Certification: | CE / ISO9001 / FDA |
| Model Number: | Custom Wire |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 P |
|---|---|
| Price: | 1.5 - 2 USD / P |
| Packaging Details: | communicate |
| Delivery Time: | communicate |
| Payment Terms: | T/T |
| Supply Ability: | 10000000P |
|
Detail Information |
|||
| Compliance: | RoHS, UL, CE Certified | Conductortype: | Stranded Or Solid |
|---|---|---|---|
| Conductorstranding: | Solid Or Stranded | Flexibility: | Flexible Or Rigid |
| Conductorstrands: | Single Strand Or Multi-strand | Surfacetreatment: | Tinned, Nickel-plated, Or Bare |
| Material: | Copper, Aluminum, Stainless Steel, Or Other Metals | Shielding: | Available With Foil, Braid, Or Both |
| Wire Gauge: | 24-26 AWG | ||
Product Description

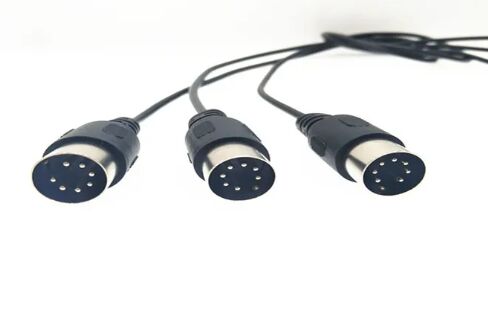

Vehicle / Camera Custom Cable Assemblies 7 Pin Male Mini Din Connector
Product Description
| Connector Specification | Standard DIN circular male connector (5/7/8-pin optional) with metal shell and plastic injection molding for stable, anti-oxidation contact |
| Wire Gauge & Length | Standard wire gauge 24-26AWG, customizable standard lengths (e.g., 1m/2m/5m, etc.) |
| Process Features | Reinforced by terminal injection molding, the cable is bend-resistant and tensile-resistant, with stable differential signal transmission and a flame-retardant jacket for safety and durability |
| Wire Core Structure | High-purity tinned copper conductor with multi-core stranded design, PVC flame-retardant insulation layer, optional multi-color cores for wire sequence identification |
| Application Scenarios | Widely used for signal transmission connections in MIDI instruments, industrial control equipment, stage lighting, medical devices, fitness equipment and more |
| Product Advantages | Strong compatibility, stable transmission, high durability, supporting non-standard customization (wire length/sequence/connector specifications), suitable for various DIN interface devices |
Characteristics
1. The wire core uses high-purity tinned copper wire with excellent conductivity and low signal attenuation, ensuring stable, interference-free transmission of MIDI signals and industrial control data.
2. The cable is covered with high-quality black PVC insulation, which is flexible, bend-resistant, anti-aging and tear-resistant, suitable for long-term, high-frequency use scenarios.
3.Reinforced strain relief at the connector enhances tensile strength between the cable and terminal, reducing bending fatigue and extending service life.
