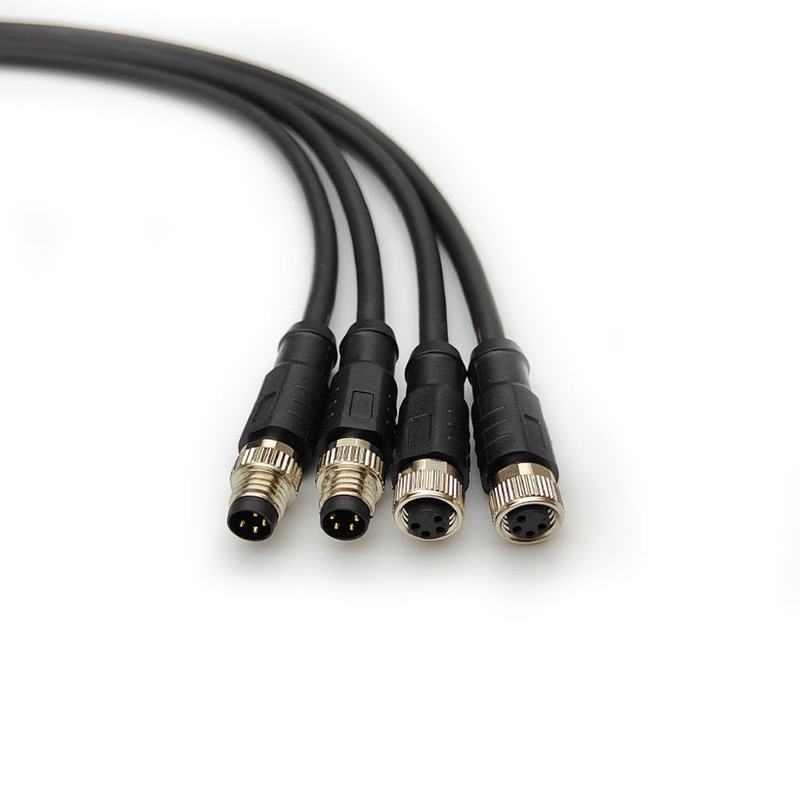

M8 3/4/5/6/8 Pin A Code Male Female Aviation Waterproof IP67 Electrical Connectors PVC Cable
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Jianzhou |
| Certification: | CE / ISO9001 / FDA |
| Model Number: | Aviation Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 P |
|---|---|
| Price: | 1.5 - 2 USD / P |
| Packaging Details: | communicate |
| Delivery Time: | communicate |
| Payment Terms: | T/T |
| Supply Ability: | 10000000P |
|
Detail Information |
|||
| Species: | GX16 Aviation Connector | Corrosionresistance: | Excellent |
|---|---|---|---|
| Insulated Material: | PVC | Working Voltage: | 12V,24V |
| Wiring: | GND, Audio, Video, Shielding, Power | Connector Color: | Nickle Plated |
| Oem: | Acceptable | Connector: | Molding |
| Wire Core Material: | Copper | Wring: | Audio, Video, GND, Power |
| Flexibility: | High | Shield Type: | Single Shielding |
| Cable Od: | 5.0MM ( 3.8 - 8.0MM) | Aging Test: | 240 Hours(ISO6722-2006) |
| Material: | Stainless Steel | ||
Product Description
M8 3/4/5/6/8 Pin A Code Male Female Aviation Waterproof IP67 Electrical Connectors PVC Cable
|
Type
|
M8 series
|
|
Application
|
wire connections, Automotive, Power, electrical
|
|
Gender
|
MALE/FEMALE
|
|
Contact Material
|
Copper
|
|
IP level
|
ip67
|
|
Housing Material
|
copper nickel plating
|
|
Rated current
|
1.5A/3A/4A
|
|
Rated voltage
|
30V/60V
|
|
IP rating
|
IP 65/IP67
|
|
Pin
|
3/4/5/6/8 pin
|
|
Temperature Range
|
-25~+80℃
|
|
Materical
|
PVC
|
|
Sheild
|
Braided double sheild
|
|
Length
|
1 meter
|
Features:
1. Lightweight and Miniaturized: The aerospace industry is highly sensitive to equipment weight. Aviation cables typically use finely stranded copper conductors with high conductivity (such as silver-plated copper conductors, which reduce resistance and improve corrosion resistance), combined with thin-walled, high-strength insulation and sheathing materials, minimizing weight and reducing outer diameter while ensuring performance.
2. High Flame Retardancy and Low Smoke Halogen-Free Properties: The enclosed space of an aircraft cabin necessitates cables that meet stringent flame retardant standards (such as US UL 1424 and European EN 3475 aerospace flame retardant specifications). They must be able to self-extinguish rapidly in the event of a fire and produce no toxic halogen gases or large amounts of smoke after combustion, avoiding endangering personnel safety and obstructing equipment visibility.
