Automotive Wiring Harness Customized 22 24 Wire Gauge 1.0 1.5 2.0 2.54MM Female Male Cable Assembly And Electrical Wire Harness
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Jianzhou |
| Certification: | CE / ISO9001 / FDA |
| Model Number: | Plate End Wiring Harness |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 P |
|---|---|
| Price: | 1.5 - 2 USD / P |
| Packaging Details: | communicate |
| Delivery Time: | communicate |
| Payment Terms: | T/T |
| Supply Ability: | 10000000P |
|
Detail Information |
|||
| Color: | Black | Wiregauge: | 18 AWG |
|---|---|---|---|
| Flexibility: | High Flexibility For Tight Spaces | Material: | Copper And PVC Insulation |
| Length: | 500 Mm | Currentrating: | 10A |
| Application: | Automotive And Industrial Machinery | Resistance: | Low Resistance Wiring |
| Connectortype: | Multi-pin Connector | Mountingtype: | Plate End Mounting |
| Productname: | Plate End Wiring Harness | ||
Product Description

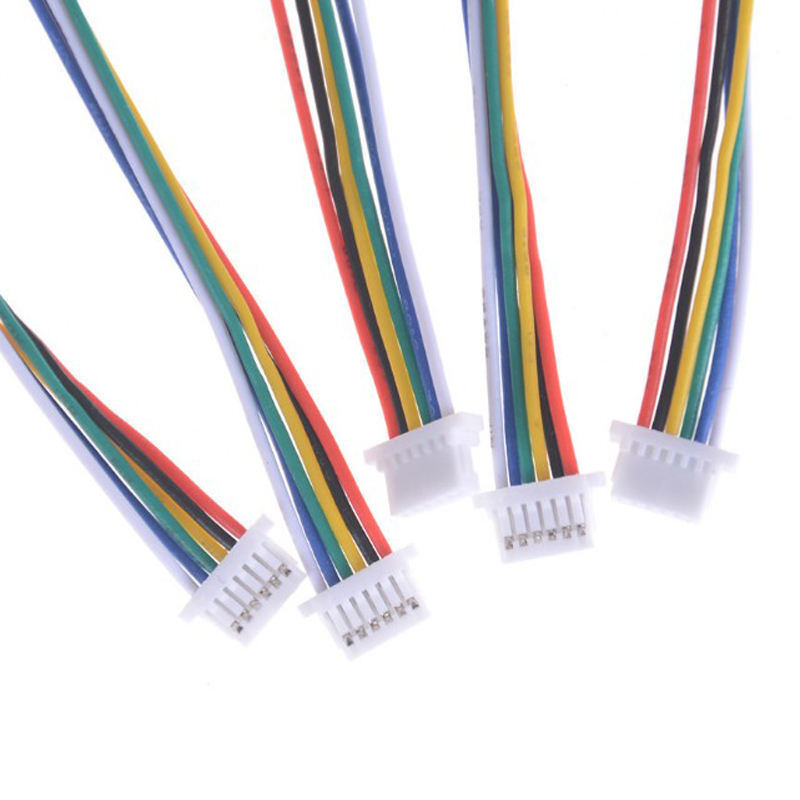

Automotive Wiring Harness Customized 22 24 Wire Gauge 1.0 1.5 2.0 2.54MM Female Male Cable Assembly And Electrical Wire Harness
|
Raw materials
|
All parts and processing is compliant with ROHS
|
|
Wire harness Materials
|
PA66 for connectors; copper or phosphor bronze for terminals
|
|
Protection tubes
|
PVC, corrugated, shrink, braided, etc.
|
|
|
|
|
OEM &ODM
|
OEM and ODM products are acceptable
|
|
Pin Plating
|
in or gold over nickel or custom
|
|
Package
|
Bag packing,Tube packing,Tape&Reel packing
|
|
Confirmation
|
Drawing will be provided before production
|
Characteristics
1. The core is the board-end connector: One end of the wire harness is equipped with a standard circuit board connector (such as pin sockets, plugs, male/female headers, etc.), which can be directly soldered or snapped onto the PCB board. The other end is provided with terminals, plugs or bare wire ends as required, to adapt to different load devices.
2. Modular wiring design: The internal wires are grouped by function and integrated through bundling, wrapping with insulating tape or threading through corrugated tubes. The wire harness layout is neat and orderly, which can fit into the narrow space inside the equipment and avoid cable chaos.
3. Stress relief structure: Stress relief components (such as injection-molded sleeves, rubber pads, etc.) are usually designed near the board-end connector to prevent the wires from coming off the solder joints due to plugging and unplugging or vibration, thereby enhancing the connection stability.
