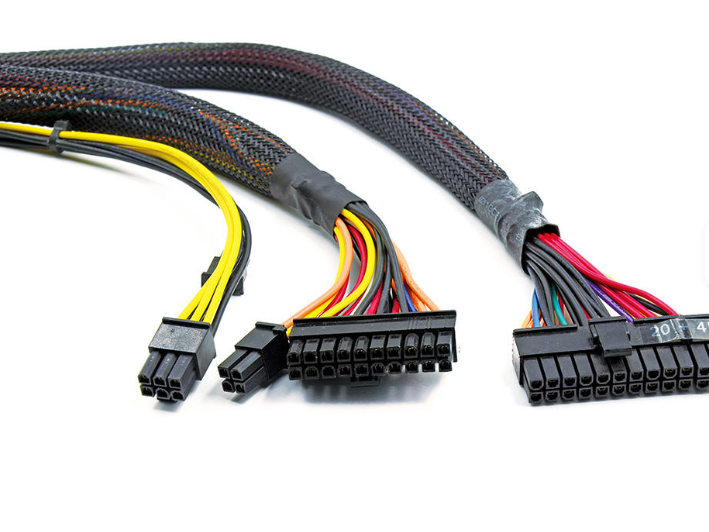

RoHS Compliant ATX 24pin Extension Cable Connector Computer Wiring Harness With Durable PVC Insulation And Copper Conductor
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Jianzhou |
| Certification: | CE / ISO9001 / FDA |
| Model Number: | PC Wire Harness |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 P |
|---|---|
| Price: | 1.5 - 2 USD / P |
| Packaging Details: | communicate |
| Delivery Time: | communicate |
| Payment Terms: | T/T |
| Supply Ability: | 10000000P |
|
Detail Information |
|||
| Currentrating: | 5A | Shielding: | None |
|---|---|---|---|
| Voltagerating: | 300V | Material: | Copper, PVC Insulation |
| Length: | 1 Meter | Color: | Multicolor |
| Flexibility: | High | Customization: | Available Upon Request |
| Application: | Computer Internal Wiring | Wiregauge: | 18 AWG |
| Productname: | PC Wire Harness | Numberofwires: | 10 |
| Connectortype: | Molex 2.54mm Pitch | ||
Product Description
RoHS Compliant ATX 24pin Extension Cable Connector Computer Wiring Harness With Durable PVC Insulation And Copper Conductor
| Item | OEM and ODM ATX Power Extension Wire Harness with 24 Pin Female To Male connector | ||
| Length | Customized | Connector1 | Molex 5557 male |
| Connector pitch | 4.2mm | Connector2 | Molex 555 female |
| Type | plat ribbon cable wire | Position | 2*12P |
| Application | ATX power | Standar | Rosh,Reach,FC,AQN,UL,ISO,CE |
| Conductor | Copper | Insulation material | PVC,PP |
| Wire color | Black | Quality | 100% tested |
Characteristics
1.The functional classification is clear.
Computer wiring harnesses are classified into different types based on their uses. The interfaces and wire gauges of each type of wiring harness are designed specifically:
Power supply type: such as ATX power supply wiring harnesses (24-pin power supply for the motherboard, 4/8-pin power supply for the CPU, 6/8-pin power supply for the graphics card), with thicker wires to carry large currents.
Data type: such as SATA wiring harnesses (connecting hard drives / optical drives to the motherboard), PCIe wiring harnesses (for data transmission of graphics cards), and front panel wiring harnesses (for power-on button, reset button, indicator lights, etc.).
Expansion type: such as USB front panel wiring harnesses and audio front panel wiring harnesses, used to connect the front panel interfaces of the computer case.
2.Standardized interfaces
The interfaces of all types of wiring harnesses follow industry-wide unified standards, have strong compatibility, and are less likely to be plugged in incorrectly:
The motherboard power supply uses a 24-pin male connector, and the CPU power supply is mostly a 4+4-pin detachable interface.
SATA wiring harnesses use L-shaped anti-reverse insertion interfaces, which can effectively prevent reverse insertion and damage to the device.
The jumper interfaces of the front panel (such as Power SW, HDD LED) are mostly small-sized Dupont heads, and some manufacturers will distinguish them by color or marking.
